GPK-40 Automatic Carton Erector 8-10 Cartons/min For Automatic Carton Packing Industry

Name: GPK40 Automatic Carton Erector 810 Cartonsmin For Automatic Carton Packing Industry
Brand: JWIM
Price: 1 USD

Brand Name : JWIM

Model Number : GPK-40

Certification : CE. ISO9001

Place of Origin : Changzhou, China

MOQ : 1 set

Price : negotiation

Payment Terms : T/T

Supply Ability : 1 Osets per month

Delivery Time : 15-90 work days

Packaging Details : wooden cases

Machine : GPK-40 Automatic Carton Erector

Material : SUS304

Applicable Carton : L: 200-450mm W: 150-400mm H: 150-400mm

Table Height : Min: 600mm Max: 720mm

Speed : 8-10 cartons/min

Power Source : ～220V 50Hz/0.4KW

Carton Storage : 50-80 pcs

External Dimension : 2000×2070×1400mm (L×W×H)

Contact Now

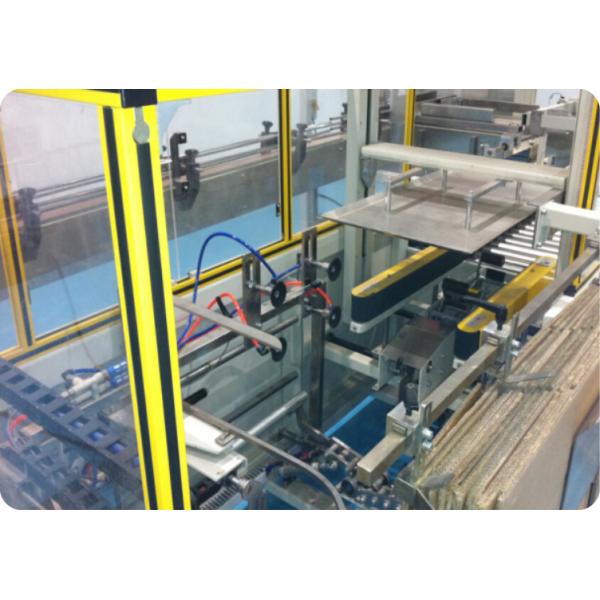

GPK-40 Automatic Carton Erector

Introduction

Carton erector is the equipment that automatically completes carton unpacking, forming, folding and adhesive tape pasting at the bottom. It is controlled by PLC and touch screen that is easy to operate. Carton erector is an essential equipment for automatic production.

GPK-40 Automatic Carton Erector 8-10 Cartons/min For Automatic Carton Packing Industry

Technical Parameters:

1	Applicable Carton	L: 200-450mm W: 150-400mm H: 150-400mm
2	Table Height	Min: 600mm Max: 720mm
3	Speed	8-10 cartons/min
4	Power Source	～220V 50Hz/0.4KW
5	Air Supply	0.6-0.8MPa
6	Tape Size	W48-60-75mm×L1000
7	Carton Storage	50-80 pcs
8	External Dimension	2000×2070×1400mm (L×W×H)
9	Weight	Around 400Kg

Features:

1. Simple structure, intellectual coordinating function without human interval.

2. Vertical carton storing, feeding at any time without stop, this will save time.

3. Stable operation, wide application range and high packing qualification rate.

4. The machine is with high automation: auto carton erecting, folding and bottom sealing. It uses PLC+Touch Screen control; it is a necessary part in the filling line.

5. The parts are precise designed, no vibration during operation, stable running.

GPK-40 Automatic Carton Erector 8-10 Cartons/min For Automatic Carton Packing Industry
